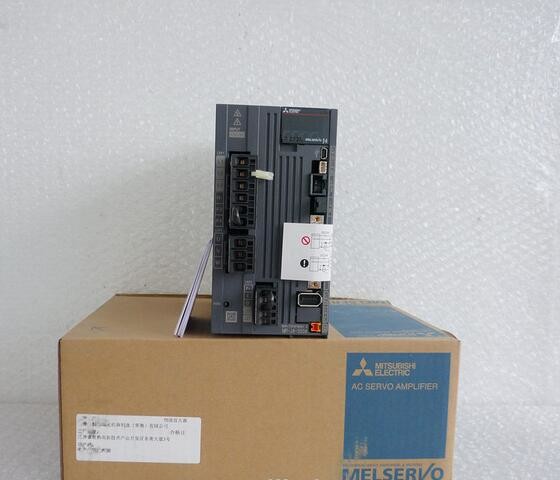

MR-J4-350A Mitsubishi Servo Amplifier Mitsubishi MR-J4 Series 3500W Servo Diver 100% Original adn New
Warehouse in stock
-
MR-J4-350A
-
Manufacturer: Mitsubishi Electric
-
Series name: MELSERVO-J4 series
-
Command interface: General-purpose interface
-
Voltage class: 200V
-
Motor rated output: 3.5 [KW]
-
Servo amplifier Model: MR-J4-350A
-
output Rated voltage: Three-phase AC170 V
-
output Rated current: 17.0 [A]
-
Voltage and frequency (Note 1): Three-phase AC200 V ~ 240 V, 50 Hz / 60 Hz
-
Rated current (Note 14): 16.0
-
Allowable voltage fluctuation: Three-phase AC170 V ~ 264 V
-
Allowable frequency fluctuation: Within ± 5%
-
Control circuit power input: Voltage and frequency:Single-phase AC200 V ~ 240 V, 50 Hz / 60 Hz
-
Rated current: 0.2 [A]
-
Power supply interface: DC24 V ± 10% (required current capacity: including the 0.5 A (CN8 connector signal))
-
control method: Sinusoidal wave PWM control and current control system
-
Permissible regenerative power:Hundred
-
Dynamic brake: Built-in (Note 4)
-
Communication function: USB: connection to a personal computer (MR Configurator2 correspondence)
-
RS-422 / RS-485: a maximum of up to 32 axes 1: n communication (Note 10)
-
Analog monitor: 2 channel
-
USB: connection to a personal computer (MR Configurator2 correspondence)
-
RS-422 / RS-485: a maximum of up to 32 axes 1: n communication (Note 10)
-
Correspondence (ABZ-phase pulse)
-
2 channel
-
4 Mpulses / s (when the differential receiver), 200 kpulses / s (when open collector)
-
Encoder resolution (resolution per servo motor revolution): 22-bit
-
Electronic gear A / B double A = 1 ~ 16777215, B = 1 ~ 16777215,1 / 10 <A / B <4000
-
0 pulse ~ ± 65535 pulses (command pulse unit)
-
± 3 rotation
-
Parameter setting or set by external analog input (DC0 V ~ + 10 V / maximum torque)
-
Analog speed command 1: 2000, internal speed command 1: 5000
-
DC0 V ~ ± 10 V / rated speed (rotation speed at 10 V is [Pr. PC12] can be changed by)
-
± 0.01% or less (load variation: 0% to 100%), 0% (power fluctuation: ± 10%) ± 0.2% or less (ambient temperature: 25 ° C ± 10 ° C) only when the analog speed
-
command
-
Parameter setting or set by external analog input (DC0 V ~ + 10 V / maximum torque)
-
DC0 V ~ ± 8 V / maximum torque (input impedance: 10 kΩ ~ 12 kΩ)
-
Parameter setting or set by external analog input (DC0 V ~ ± 10 V / rated speed)
-
Non-compliant (Note 17)
-
2-wire communication method (Note 9)
-
Mitsubishi high-speed serial communication
-
Advanced vibration suppression control Ⅱ, adaptive filter Ⅱ, robust filter, auto-tuning, one-touch adjustment, tough drive function, drive recorder function, machine
-
diagnostics, power monitor function, super trace control (Note 15), lost motion correction function (Note 15 )
-
Overcurrent cut-off, regenerative overvoltage shut-off, overload shut-off (electronic thermal), servo motor overheat protection, encoder error protection, regenerative
-
error protection, undervoltage protection, instantaneous power failure protection, overspeed protection, excessive error protection, magnetic pole detection and
-
protection, linear servo control error protection
-
STO (IEC / EN 61800-5-2)
-
EN ISO 13849-1 Category 3 PL e, IEC 61508 SIL 3, EN 62061 SIL CL 3, EN 61800-5-2 (Note 20)
-
8 ms or less (STO input off → energy cut-off)
-
Test pulse interval: 1 Hz ~ 25 Hz, test pulse off time: Up to 1 ms
-
MTTFd ≧ 100 [years] (314a)
-
DC = medium (Medium), 97.6 [%]
-
PFH = 6.4 × 10 -9 [1 / h]
-
The correspondence to the international standards and laws, Standards Compliant page please refer to.
-
Structure (degree of protection): A little over cold, open (IP20)
-
Shipping Weight : 24 KG
