Mitsubishi FX3G FX3G-60MR-DS MELSEC-F series sequencer unit (input: DC24V 36 points (40) sink/source) (output: 24-point

Product Categories
Shenzhen Hunt Electronics Co., Ltd
Contact Now

Mitsubishi FX3G FX3G-60MR-DS MELSEC-F series sequencer unit (input: DC24V 36 points (40) sink/source) (output: 24-point

Brand Name : MITSUBISHI

Model Number : FX3G-60MR-DS

Certification : CE

Place of Origin : Japan

MOQ : 1piece

Price : USD210~245/PCS

Payment Terms : T/T

Supply Ability : 1000PCS/per

Delivery Time : in stock

Packaging Details : Height (mm): 90 Width (mm): 175 Depth (mm): 86 Weight (kg): 0.85

Number of Digital Inputs : 36

Number of Digital Outputs : 24

Supply Voltage : 24 VDC

Input Voltage : 24 VDC Sink/Source

Output Type : Relay

Contact Now

Product Specifications

  • Part Number: FX3G-60MR-DS
  • PLC Series: FX3G
  • Manufacturer: Mitsubishi
  • Our part number: FX3G60MRDS
  • Number of Digital Inputs: 36
  • Input Voltage: 24 VDC Sink/Source
  • Number of Digital Outputs: 24
  • Output Type: Relay
  • Supply Voltage: 24 VDC
  • Height (mm): 90
  • Width (mm): 175
  • Depth (mm): 86
  • Weight (kg): 0.85

Information about this range

  • Expandable compact PLC
  • Available as AC or DC powered
  • DC models have variable voltage,12 to 24 VDC
  • Expandable for up to 256 inputs/outputs
  • Available with relay or transistor outputs
  • High speed inputs for fast counting tasks
  • LEDs for indicating input & output status
  • Integrated USB interface
  • Two integrated serial interfaces
  • A 2nd RS485/422/232 communications interface can be added
  • Can be mounted on DIN rail or a flat surface
  • Password access protection
  • 32,000 step program EEPROM memory
  • Detachable terminal blocks for all units
  • Slot for memory cassettes
  • Integrated real time clock
  • Integrated positioning control
  • Exchangable interface & I/O adapter boards
  • I/O,ADP & special function modules available
  • User friendly programming systems

Specifications
Not what you’re looking for? Select the attributes you require, then click the button below
Manufacturer Series FX3G Series
Supply Voltage 12 → 24 V dc
Output Type Relay
Number of Outputs 24
Number of Inputs 36
Input Type Sink/Source
Display Included No
For Use With MELSEC FX3G Series
Expansion Available Yes
Output Current 8 A
Mounting Type DIN Rail
Scan Time 0.21 μs, 0.42 μs
Depth 86mm
Total Memory Available 32000 Steps
Width 90mm
Length 175mm
Maximum Operating Temperature +50°C
Programming Language Used Ladder Logic
Operating Mode Program, Run
Programming Interface Computer, HMI
Program Capacity 32000 Steps
Minimum Operating Temperature 0°C

DC power supplies and DC input type
Input: 36 point DC24V sink / source
Output: 24-point relay operation control system
　Cyclic stored-program and processing the interrupt instruction
Input/output control method
　Bulk handling system (END instruction execution time), input and output refresh command, pulse catch features
Program languages
　Relay symbols + step ladder method (SFC expression allowed)
Program memory
　The maximum memory capacity 32,000 steps
　Built-in memory capacity and format 32000 steps EEPROM
　Cassette memory (memory board) FX3G-EEPROM-32L
　RUN in write function and
　Protection function keyword protection features and customer keywords
Type of instruction
　Basic instruction
　　Sequence: 29 pieces, step ladder instruction: 2 pieces
　Application instructions application instructions: 121 seeds
Arithmetic speed
　Basic instruction
　　Standard mode::0.21 μ s / instruction
　　Extended mode::0.42 μ s / instruction
　Application instructions
　　Standard mode: 0.5 µm s-100 μ s / instruction
　　Extended mode time: 1.2 μs to 100 μ s / instruction
Number of input and output
　Input number + output points total 128 points below
　Remote I/O points (CC-link) 128 points below Mitsubishi FX3G FX3G-60MR-DS MELSEC-F series sequencer unit (input: DC24V 36 points (40) sink/source) (output: 24-point


Quality Mitsubishi FX3G FX3G-60MR-DS MELSEC-F series sequencer unit (input: DC24V 36 points (40) sink/source) (output: 24-point wholesale

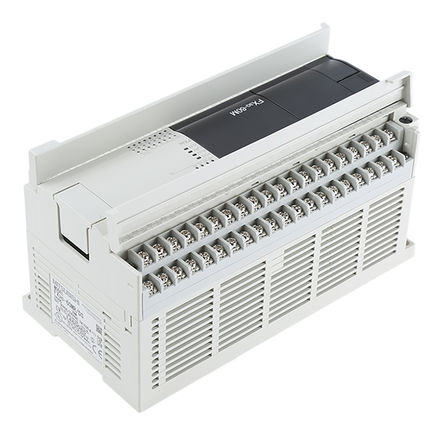

Mitsubishi FX3G FX3G-60MR-DS MELSEC-F series sequencer unit (input: DC24V 36 points (40) sink/source) (output: 24-point Images
